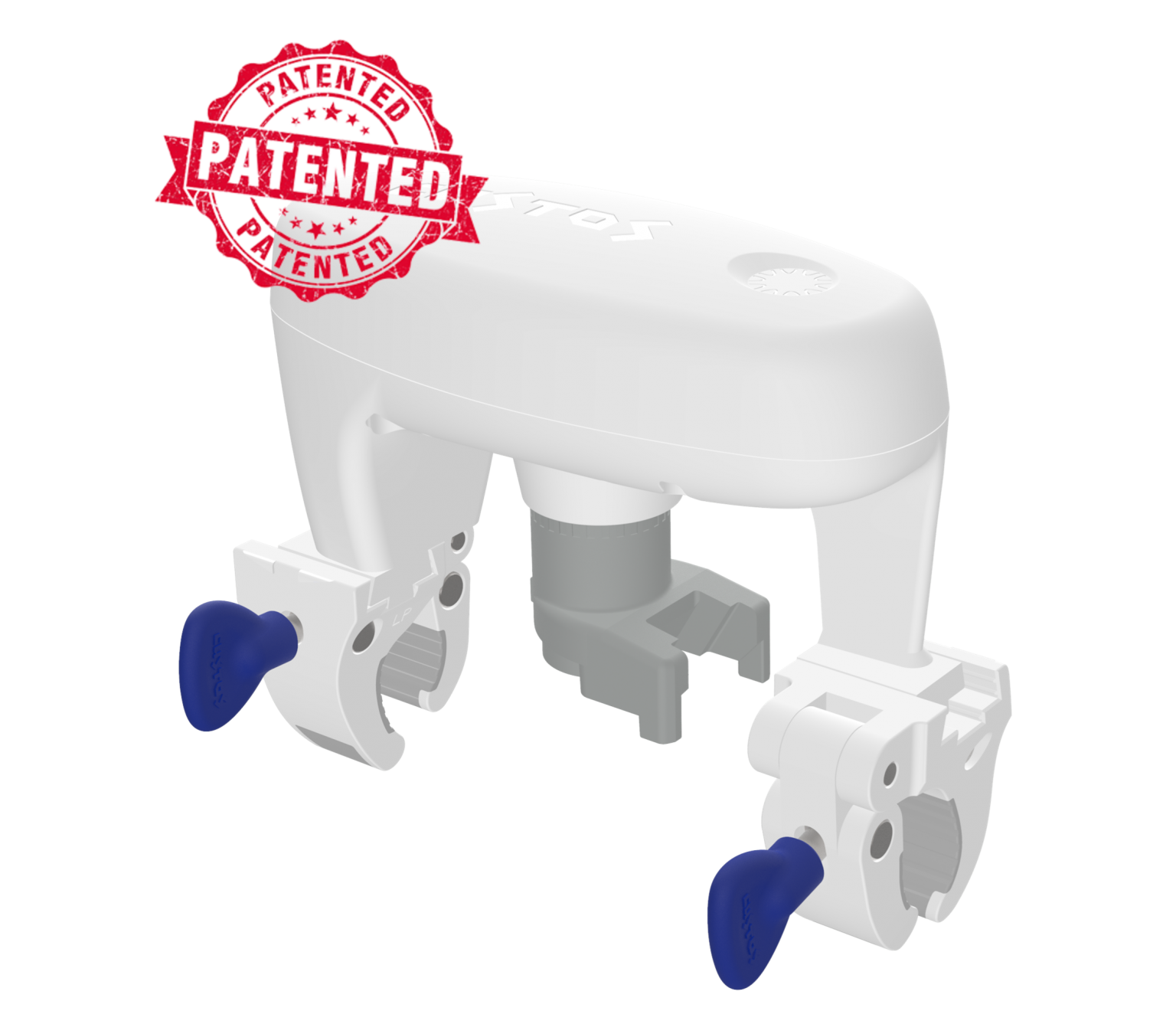

Range from 0.5~1.25 inches to cope with over-sized valves, pipes and/or elbows. BVS (Ball Valve Servo) is the most intelligent motor servo for ball valves on the market
- Installation in 20 seconds
- No pipe cutting, no plumber
- Automated calibration
Range from 0.5~1.25 inches to cope with over-sized valves, pipes and/or elbows. BVS (Ball Valve Servo) is the most intelligent motor servo for ball valves on the market
Patent NO.:
| Feature/Function | BVS |
| Max Drive force |
Smart adaptive torque up to 8N.m, MCU will determine the minimal needed force by advance control feedback algorithm 1/2200 turn positioning precision |
| Adjustable Opening |
0-100% precise control |
| Pipe/valve sizes to fit |
From ½ inch to 1¼ inch |
| Outdoor use |
Yes |
| Water proof |
IP66 |
| UV proof |
Yes |

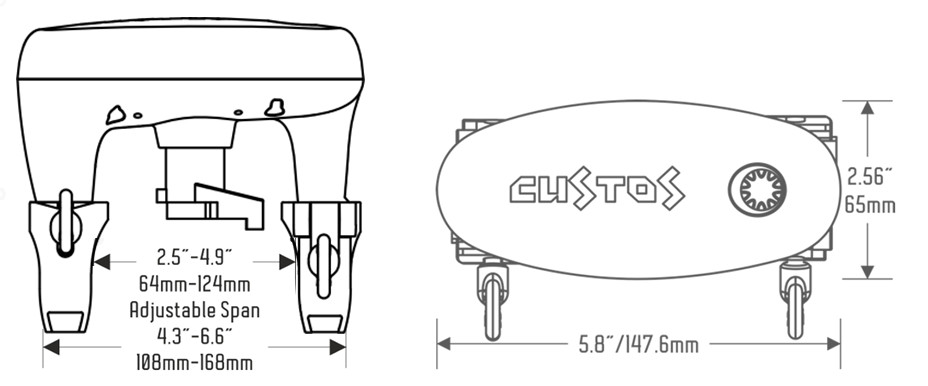

| Inter clamp clearance |
2.5~4.9 inches user adjustable |
| In small space or with elbow |
99% OK |
| Supported RF Protocol |
Ubilink, Z-Wave and LoraWAN |
| Calibration for valve handle Alignment |
Automatic alignment check and self calibration in need |
| Authentication & encryption |
Yes |
| Back up battery |
Optional Smart Power Station,User Scalable 1-4 X 21700 Lithium rechargeable battery, max 70W |
| Smart battery reconditioning |
Yes |
